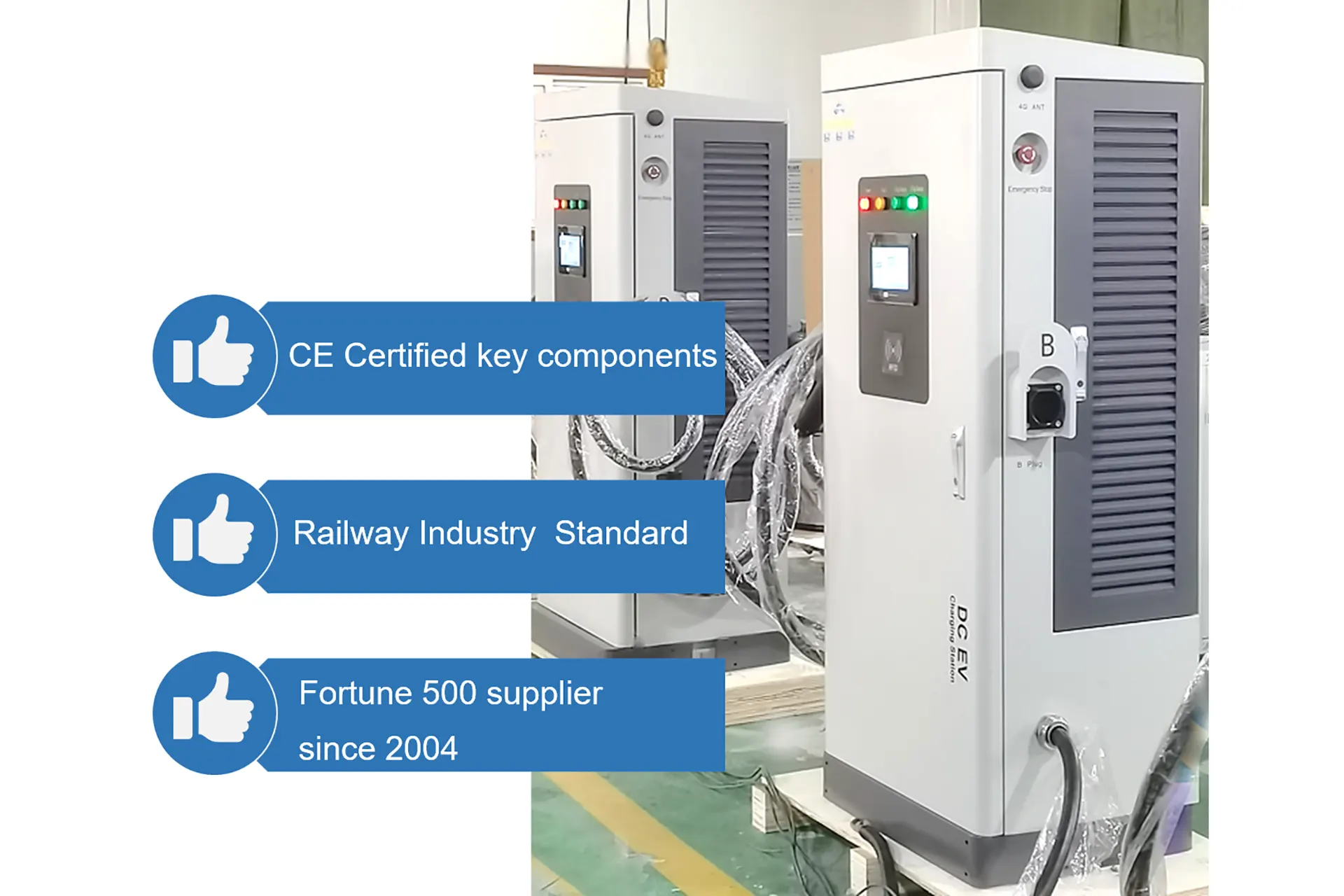

EV CHARGING STATION - Image 4
EV CHARGING STATION - Image 5
AUTO PARTS

EV CHARGING STATION

This car design is available in a variety of configurations model.
Different models have different quotations, please inquire.

Compare

Welcome To Inquire, We Guarantee Your Satisfaction ！

  • Check Mark Accept payment in RMB
  • Check Mark Cars can be delivered in designated port cities
  • Check Mark Accept mass customization
Auto Parts
Power Level

120KW, 160KW, 240KW, 60KW

Voltage Series

Three-phase five-wire system (A.B.C.N.PE)

Input Voltage

AC380V±10%

Input Frequency

50Hz+5%

Steady Flow Accuracy

≤ ±1%

Power Factor

≥ 0.99

Overall Machine Efficiency

≥ 94% (above half load)

The Output Voltage

DC200-1000V

Output Current

Maximum single gun 250A

Charging Interface

Double gun, national standard (9 holes) DC charging gun

Gun Line Length

5m (3m/7m)

Communication Method

4G, Ethernet

Start Mode

etc., Plug and play, scan QR code, swipe card

Protocol

Supports multi-platform protocols

Human-Machine Display

7" color touch screen (10" optional), light strip display

Protection Level

can be installed outdoors, IP54

Cooling Method

Forced air cooling

Implementation Standards

GB/T18487, GB/T20234, NB/T33008

Soft Start Time

3~8s

Measuring Accuracy

Level 1

Operating Temperature

-20C~50℃

Working Altitude

≤ 2000m

Working Humidity

5%~95%RH without condensation

Noise

55-80dB

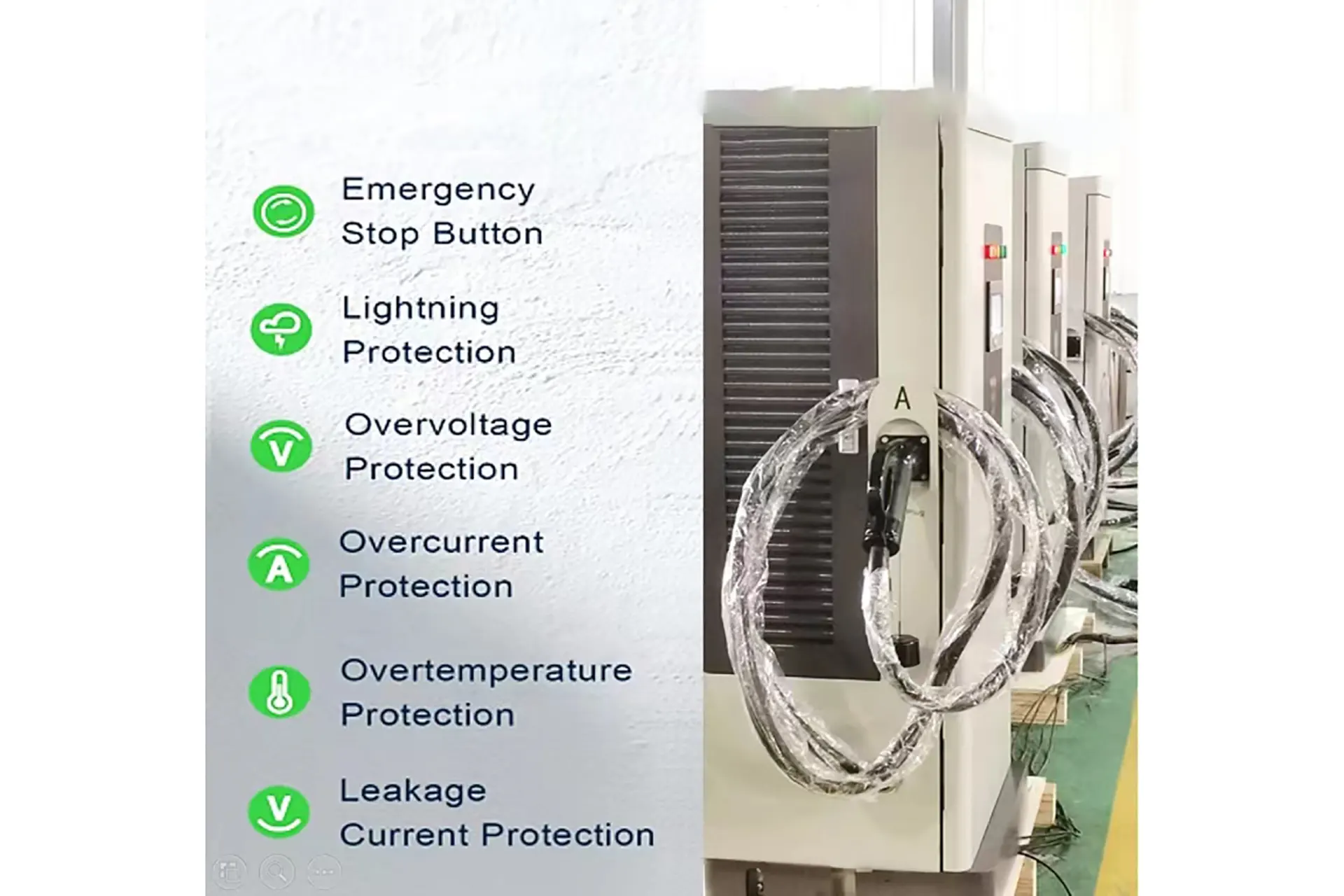

Input Protection

leakage, lightning protection, overcurrent, short circuit protection, Under/overvoltage

Output Protection

anti-reverse connection, communication protection, Overcurrent, overvoltage, short circuit

Special Protection

Battery abnormality detection, emergency stop button, insulation detection

Product Size

700*530*1500mm
