Blue Whale Tourist RV

Chang’an Fengjing-Blue Whale Tourist RV (card seat)

_{version number: 20230608}

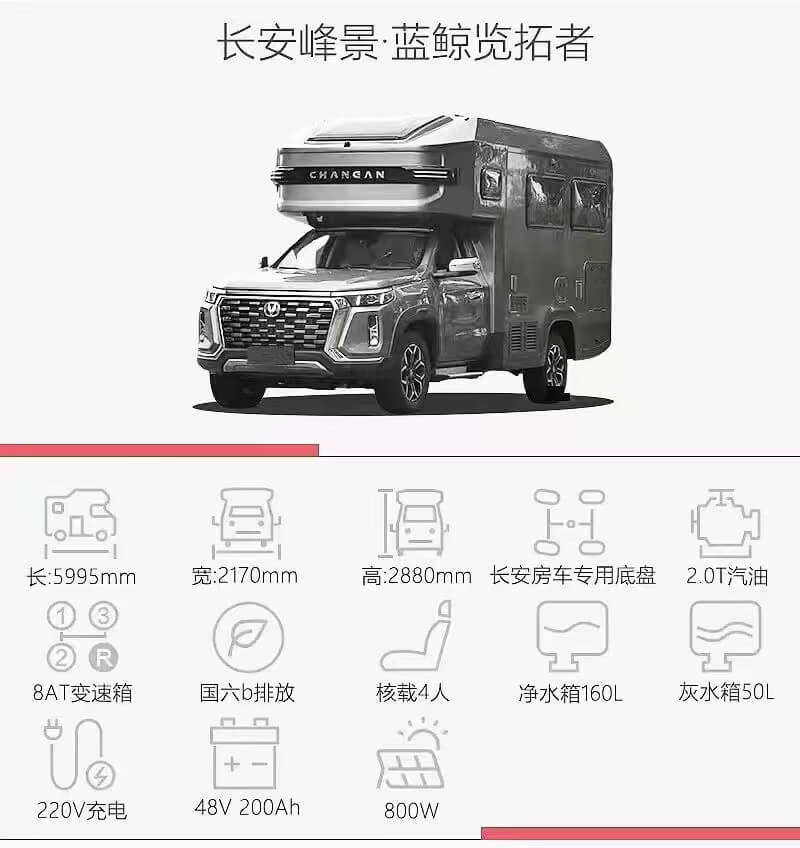

Basic parameters

Length(mm)

5995

Emission Standards

Country VI B

Width(mm)

2170

Engine type

D20T GDI twin-scroll supercharged direct injection engine

Height(mm)

2880

Displacement(L)

2.0T

Curb weight (kg)

3087

fuel

gasoline

number of seats

6 people

Fuel tank volume (L)

80

bed

Forehead bed + booth bed

Engine maximum power (kW/rpm)

171/5000-5500

Wheelbase(mm)

3430mm

Engine maximum torque ( N.m/rpm)

390/1900-3300

Wheelbase front/rear (mm)

1610/1710

transmission

ZF 8AT

Minimum ground clearance (mm)

215

four-wheel drive system

Front real-time four-wheel drive (2H/ATUO/4L)

Approach angle/departure angle (°)

28°/17°

differential lock

Center differential lock + rear axle differential lock

RV body structure

Integral cage type high torsion resistance body

Driving area air conditioning

Automatic air conditioning + rear air outlet

Chassis configuration

Intelligent driving and safety configuration

Standard configuration

High configuration

Chassis

Special chassis

Special chassis for Changan Automobile and RV

●

●

Chassis structure

Non-load-bearing

●

●

Suspension System

Double wishbone independent suspension + fully graduated leaf spring non-independent suspension

●

●

power steering

Electronic power steering (EPS) + steering multi-mode (light, comfort and sport)

●

●

driving mode

Economy, standard, sport, snow, off-road (five types in total)

●

●

Tow hook status

front tow hook

●

●

Braking System

Four wheel disc brakes

●

●

Parking brake

EPB electronic handbrake

●

●

Tire specifications

265/60R18 tires (HT)

●

●

Wheel hub material

Aluminum alloy wheels

●

●

lighting combination

LED headlights + LED daytime running lights + LED front position lights

●

●

automatic headlights

Automatic headlights + electric headlight angle adjustment + headlight delay shut-off function

●

●

Boneless wipers

Boneless wipers + automatic function

●

●

exterior rearview mirror

Electric adjustment + defrost heating function

●

●

Driver’s seat

6-way manually adjustable (up, down, front, back and backrest)

●

●

co-pilot seat

4-way manually adjustable (front, rear and backrest)

●

●

airbag

Dual airbags for driver and passenger seats

●

●

Vehicle theft prevention & rescue

roadside assistance

●

●

Anti-theft monitoring and tracking

●

●

body stability system

ABS+EBD

●

●

Body electronic stability system (ESC/ESP)

●

●

Traction Control (TCS)

●

●

Brake Assist (BA)

●

●

Hill Assist (HHC)

●

●

Hill Descent (HDC)

●

●

emergency brake warning system

●

●

ESC switch

●

●

driving safety system

Engine electronic anti-theft

●

●

Direct Tire Pressure Monitoring System (TPMS)

●

●

cruise control

●

●

lane departure warning system

●

●

Keyless entry (front row) & one-button start

●

●

Intelligent remote control key (remote control of windows, unlocking, locking)

●

●

Speed-sensitive door automatic locking (cab left and right doors)

●

●

Collision automatic unlocking function

●

●

Collision automatic oil cutoff function

●

●

Multi-function steering wheel: sound + music + driving computer information switching + cruise control + blue

●

●

Teeth phone + voice control

Cab intelligent healthy air conditioning control system: single zone automatic air conditioning + dust filter +

●

●

Forest purification system + automatic defogging

12.3-inch color display (radio + USB + Bluetooth)

●

●

Dual-screen linkage: 7.5-inch color LCD display in the cockpit + 12.3-inch high-definition touch entertainment

●

●

Leda screen (center console screen)

Smoke alarm + carbon monoxide alarm

●

●

Chassis

driving safety system

Front row 12V power supply

●

●

USB interface

●

●

ETC interface

●

●

Full-time 4G online

●

●

Two-way WiFi (car WiFi hotspot + WiFi connection channel)

●

●

Online voice: speech recognition + sound source localization + sound reproduction

●

●

Online navigation: Amap (GPS+Beidou)

●

●

540 panoramic visual driving assistance

●

●

Rear parking radar

●

●

Driving streaming media rearview mirror (with driving record)

●

●

Living area configuration

Exterior and interior

Standard configuration

High configuration

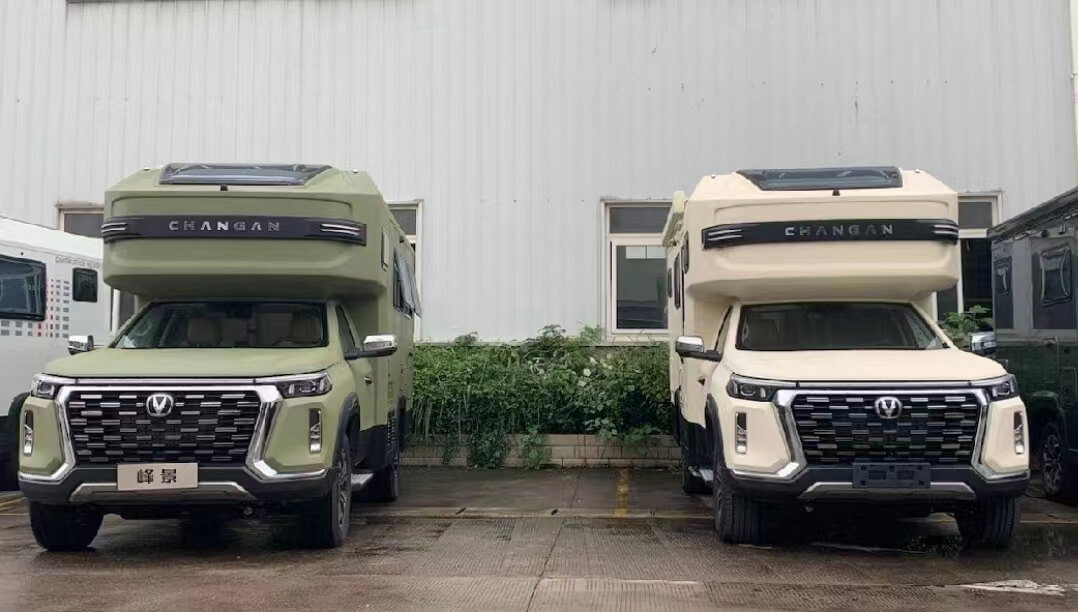

Exterior color

Haoyuebai

●

●

Xingyue Gray

–

●

interior system

interior style

Wood color

●

●

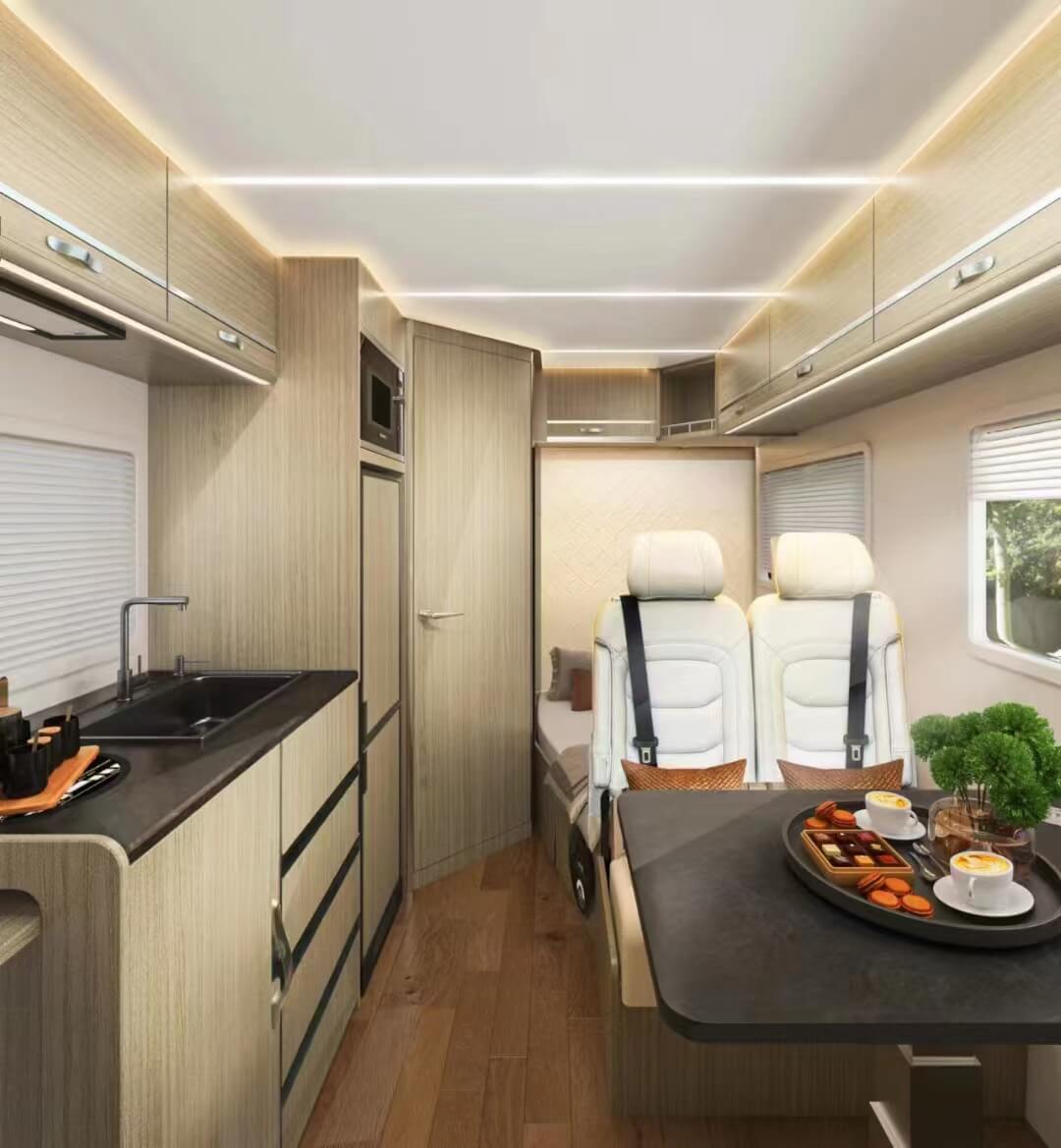

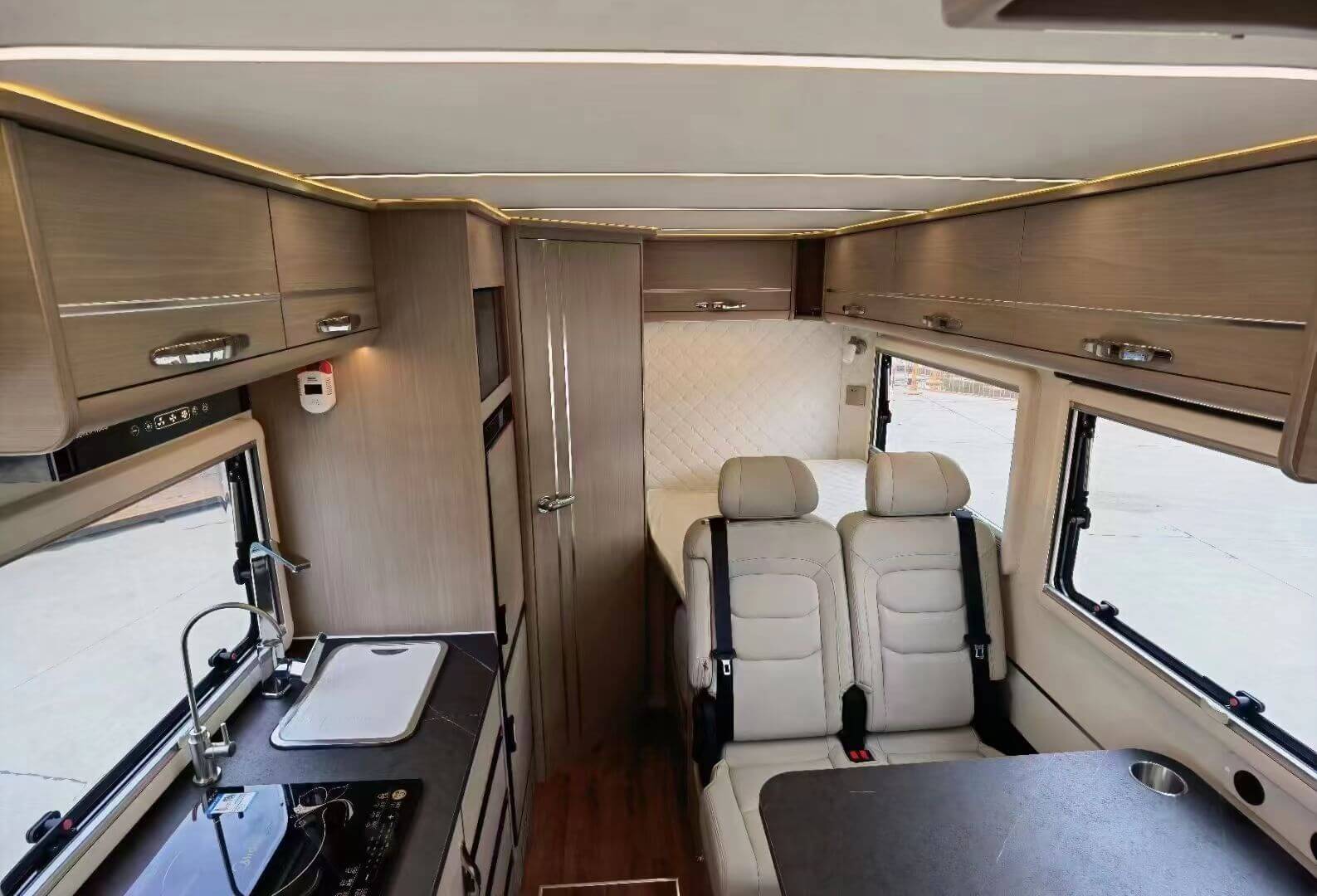

Guest area

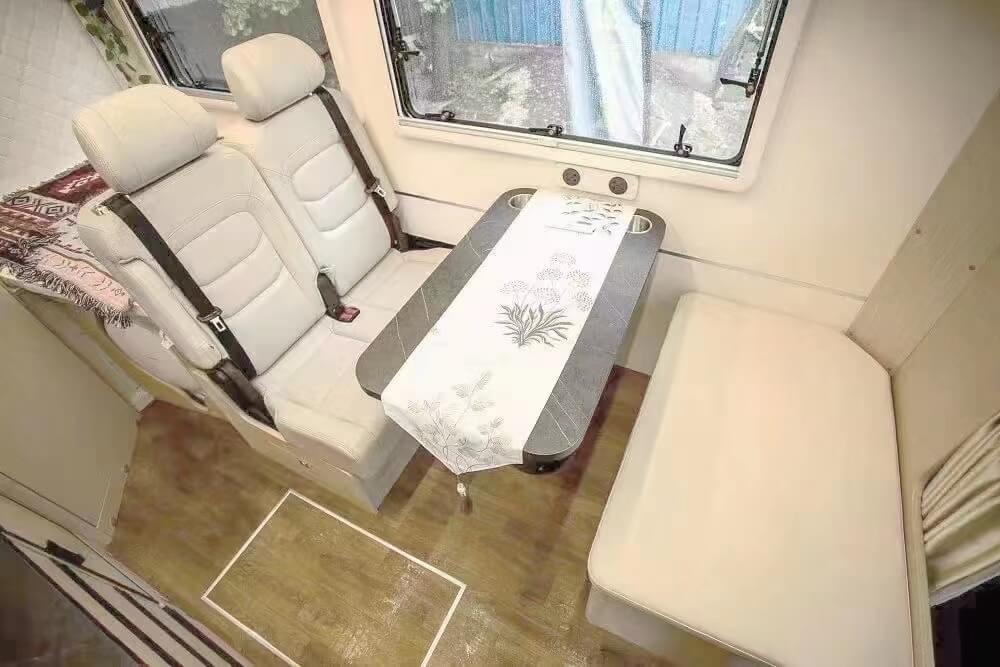

Pneumatic booth table

–

●

Manual booth table

●

–

Ceiling cabinet in guest lounge area

●

●

Guest rest DIY area

●

●

Guest bedroom area

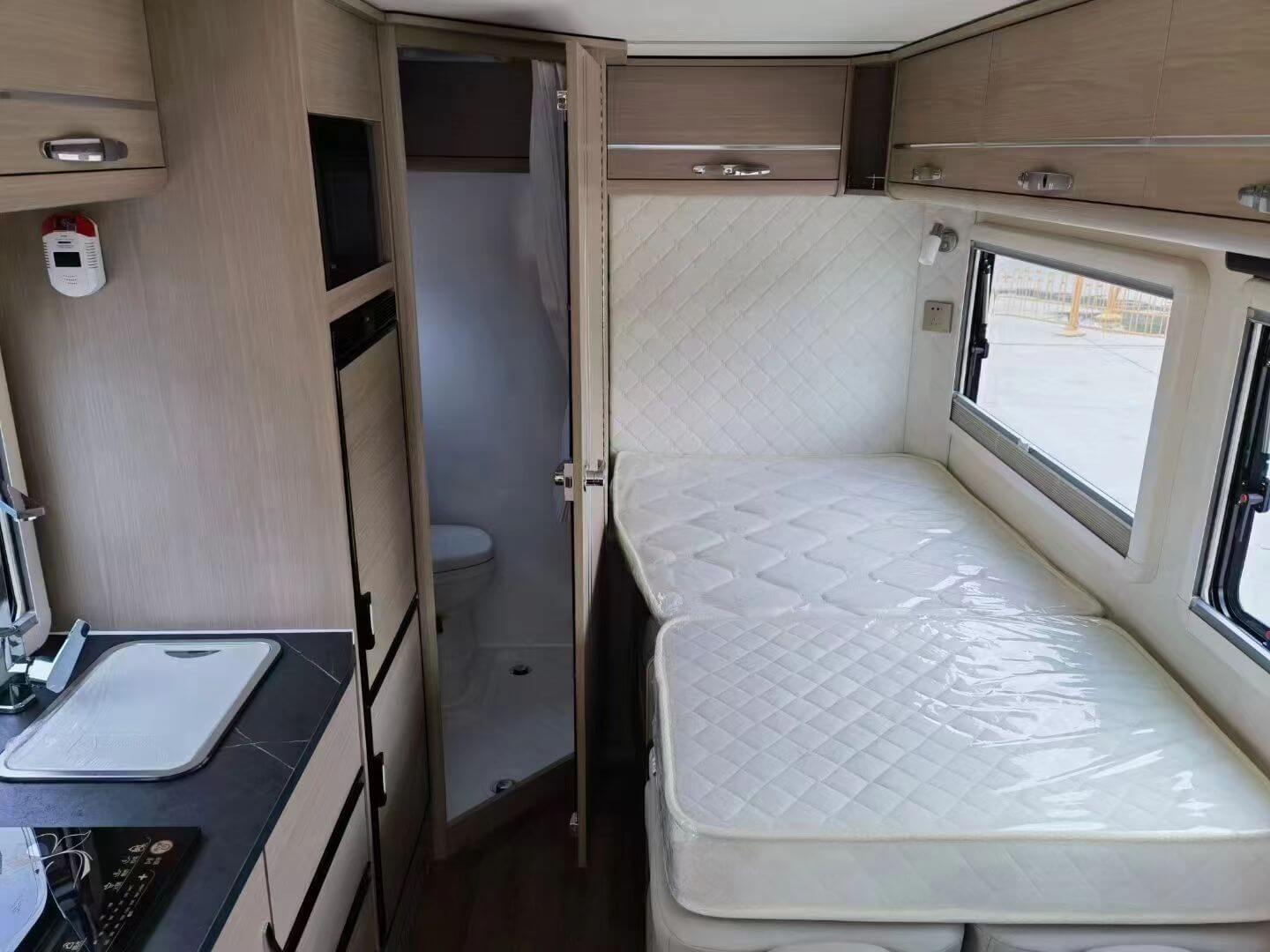

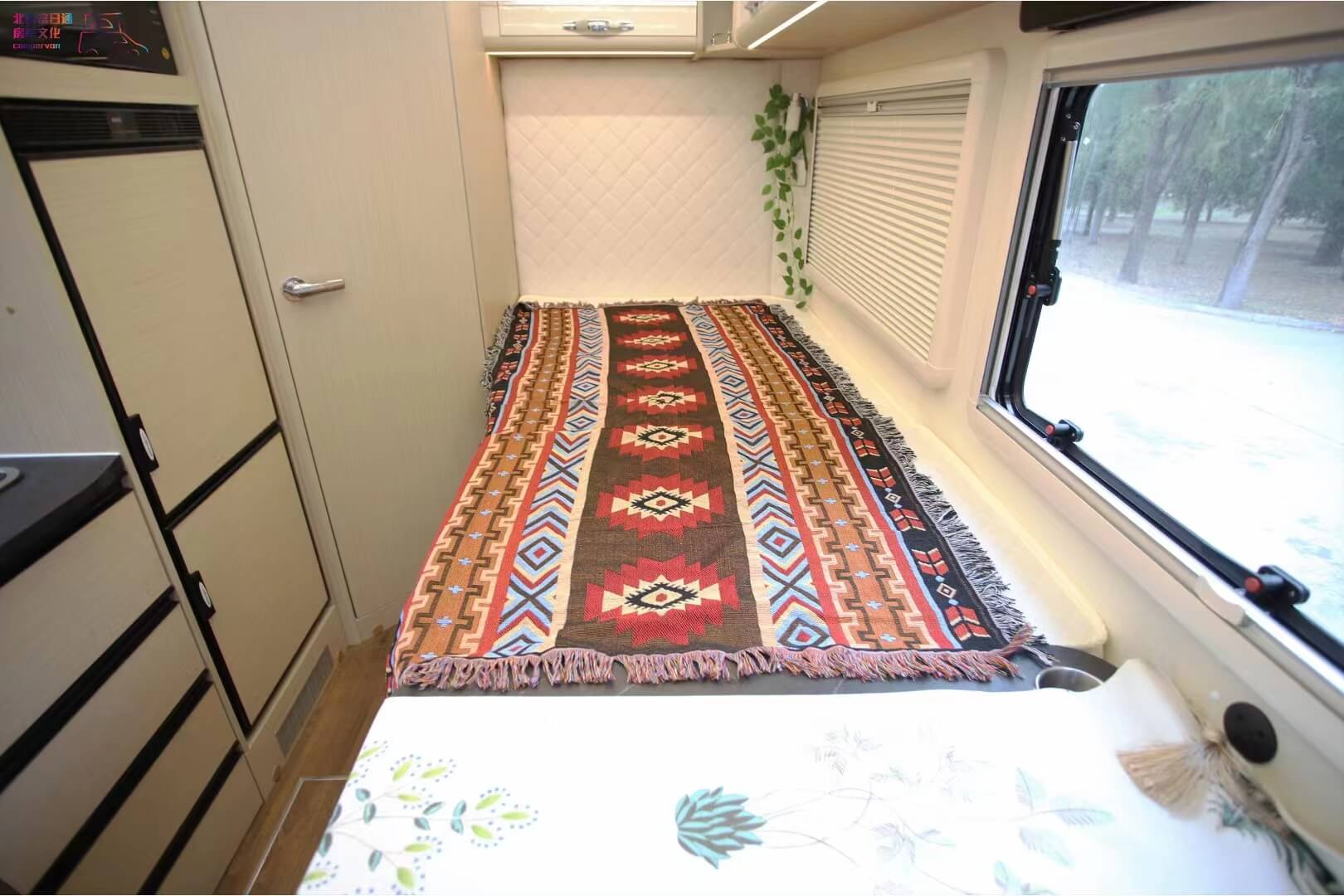

Card base bed

●

●

Forehead bed curtain

–

●

forward cabin curtain

–

●

400L large wardrobe

●

●

Customized foam mattress (two pieces)

●

●

Exterior trim system

Two-point passenger door + hidden screen door

–

●

Single point passenger door + hidden screen door

●

–

Handrails for getting on and off the bus

●

●

Passenger door electric step (physical switch)

●

●

Cab side step

●

●

Double-layer thermal insulation window in the deck area

●

●

Double-layer thermal insulation window in guest lounge area

–

●

Forehead left and right side windows

●

●

Manual parking legs

●

●

Forehead decorative lamp

–

●

Three-dimensional armored rear panel

–

●

Exterior aluminum plate composite insulated body

–

●

FRP composite insulated body

●

–

Two-color body

–

●

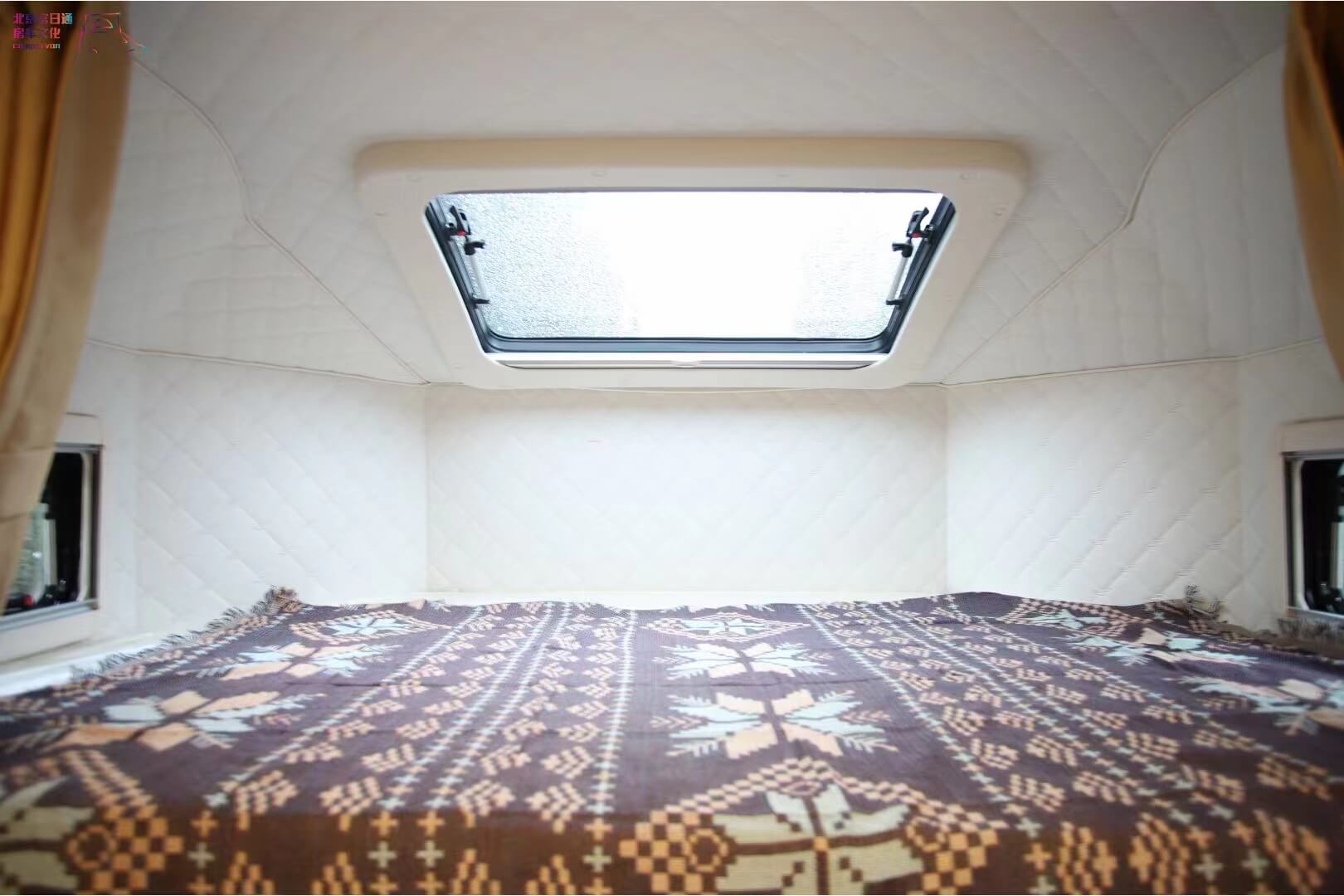

Panoramic RV sunroof with blackout curtain in the forehead and bed area

–

●

Manual awning

●

–

Electric awning

–

●

Comfort and convenience

Standard configuration

High configuration

lighting system

Reading light in sleeping area

●

●

Car interior ambient light

●

●

Exterior awning lighting

–

●

Bathroom + cooking table + passenger area lighting

●

●

Luggage compartment lighting

●

●

Power supply system (48V)

48V200Ah lithium battery (10 degrees)

(2)

●

5KW charging and inverting machine (5KW inverter + 3.3KW charger)

(2)

●

48V100Ah lithium battery (5 degrees)

●

–

3KW charging and inverting machine (3KW inverter + 2KW charger)

●

–

New energy national standard charging port

●

●

circuit protection device

●

●

Electric energy supply system

solar energy

Solar panel (400W)

●

–

Solar panel (800W)

(2)

●

Intelligent system

Computer intelligent control (electrical appliances + energy + diagnosis + time + temperature)

●

●

Intelligent control of lighting system (ambience light + ceiling light + armrest light)

●

●

Car lights at night

●

●

Four-way security monitoring

–

●

Heating air and hot water system

5000W diesel heater

●

●

Warm air and water system

●

●

Living area air conditioning

Split air conditioner for RV (supports use during driving)

●

●

Audio and video entertainment system

Online car brand radio

●

●

22-inch ceiling TV + brand speakers

–

●

Clothes cleaning system

3kg washing machine

(1)

●

Bathroom ventilation system

Two-way ventilation fan

●

●

Bathroom heating system

(1)

●

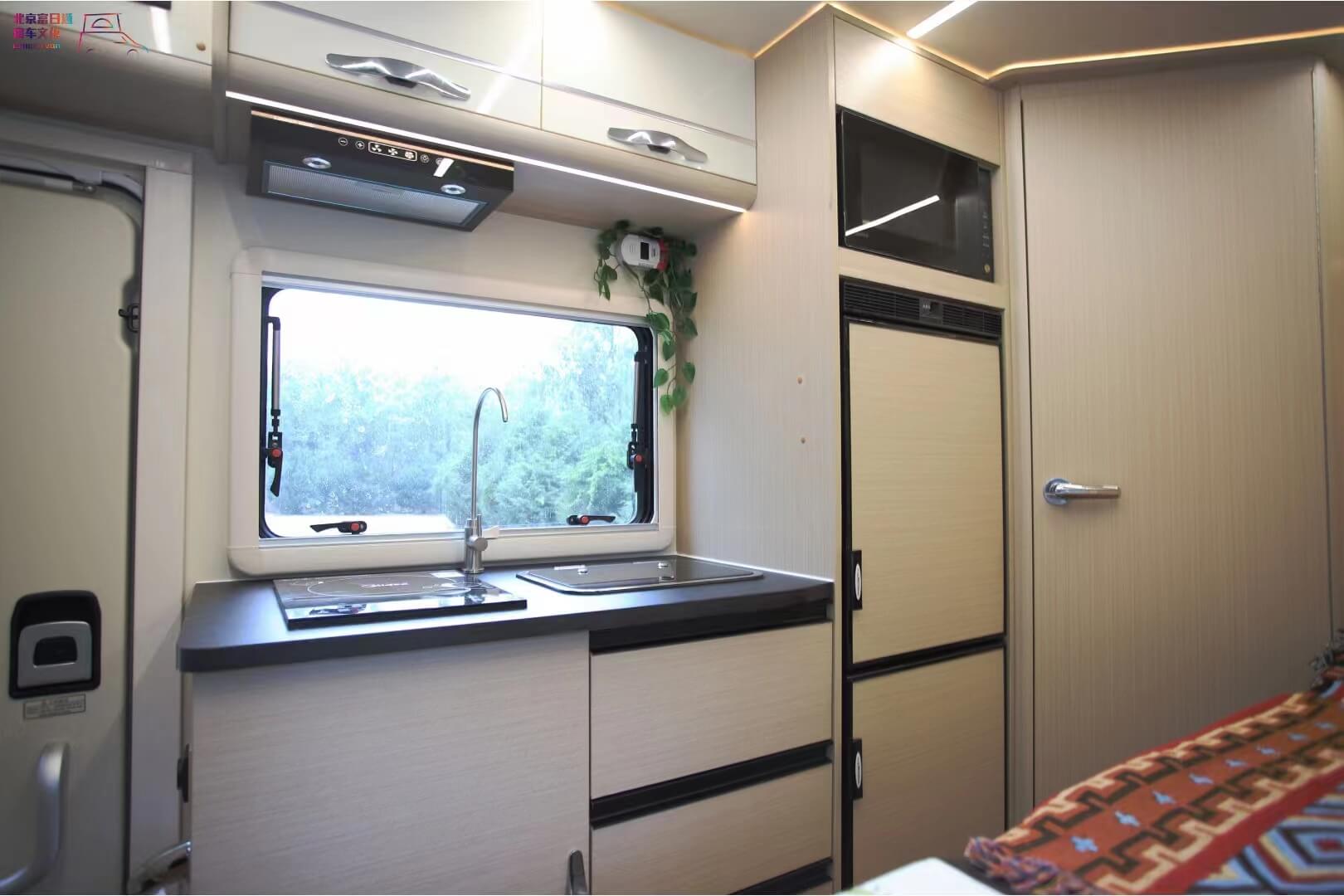

kitchen system

built-in kitchen

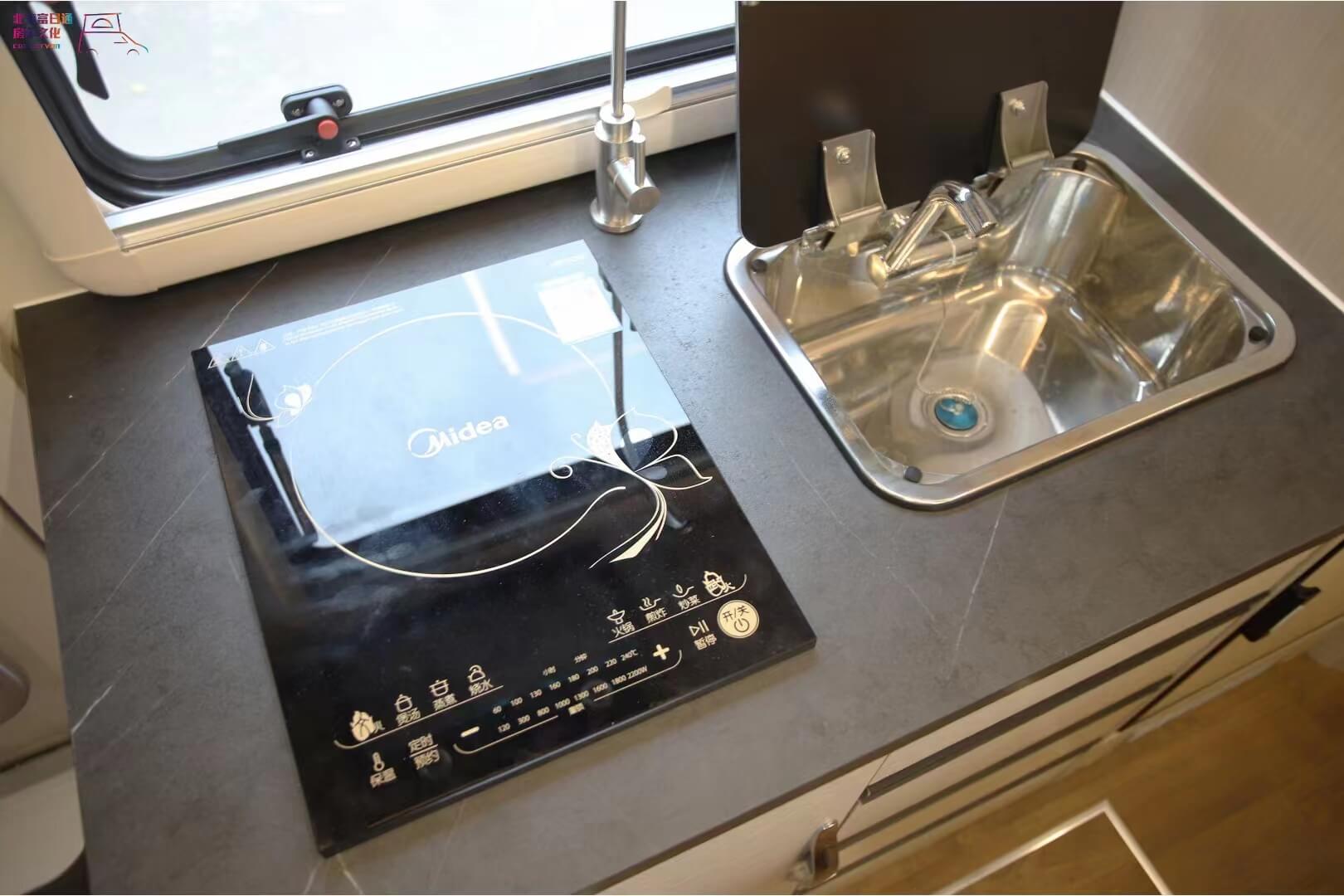

2200W induction cooker

●

●

range hood

–

●

Covered sink

●

●

Expand kitchen rock slabs

–

●

Direct drinking water system

(1)

●

Micro-wave oven

–

●

Large refrigerator for RV 66L

●

–

Large refrigerator for RV 148L

(1)

●

external kitchen

external faucet

●

●

Sunken stove

●

●

Diesel stove

(1)

●

Waterway and toilet system

160L clean water tank

●

●

50L gray water tank + manual drain valve (with extended water pipe)

●

●

Gravity water inlet

●

●

Electric water pumping function (12V power interface + external pump)

–

●

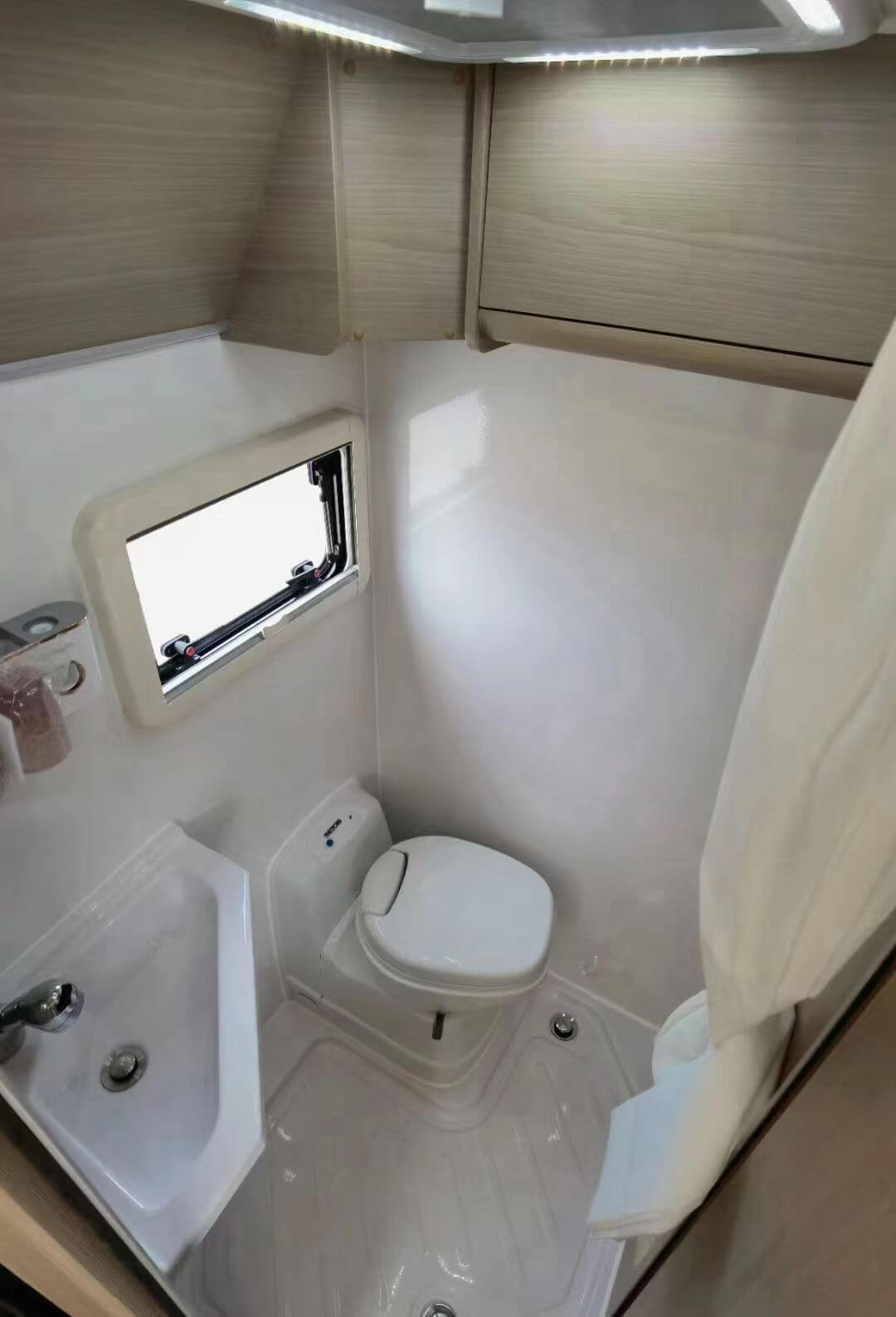

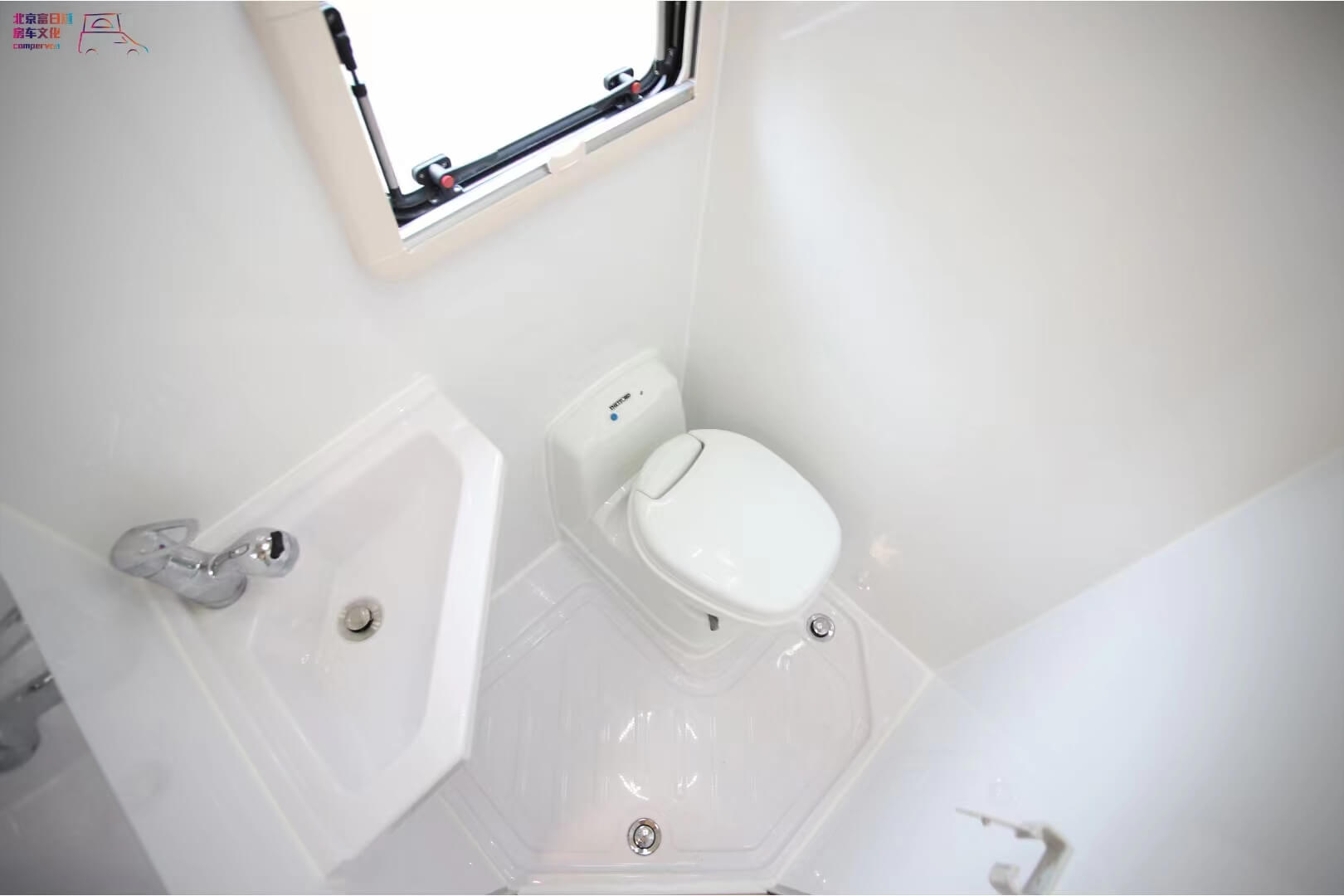

Separate bathroom + blister integrated sink + double drainage floor drain + shower head + bathroom curtain

●

●

Cosmetic mirror + clothesline + wall cabinet + mouthwash cup combination

–

●

Rotating toilet

●

●

Optional upgrade package

Standard configuration

High configuration

Life comfort package (1)

3kg washing machine, bathroom heating system, direct drinking water system, large refrigerator for RV

(1)

–

148L, microwave oven, diesel stove

Worry-free electricity package (2)

48V200Ah lithium battery + 5KW charging and inverting machine (5KW inverter 3.3KW charging

(2)

–

machine) + solar panel (800W)

Water worry-free bag (3)

300L clean water tank + water tank heating + water tank cleaning

(3)

(3)

Exclusive customized package

Standard configuration

High configuration

Body color customization

Military green metallic paint

○

○

Champagne gold metallic paint

○

○

Anti-scratch matte paint

○

○

Body color strips

○

○

Two-color body

○

—

Customer-specific customization is acceptable

○

○

Interior color customization

Plan A: Bright and elegant color

○

○

Plan B: Latte color

○

○

Customer-specific customization is acceptable

○

○

Off-road exclusive customization

A: Ladder + bicycle rack

○

○

B: Mecha external storage compartment (1 piece)

○

○

+Full size aluminum alloy wheel spare tire+spare tire

C: 1600W double expansion solar panel

○

○

D:300 clean water tank

○

○

Remark

Off-road customization packages A and B cannot be selected at the same time. They will be taken away with the vehicle without installation.

● Standard ○ Optional – None

The manufacturer has the right to change the above parameters without prior notice. Implementation time: July 1, 2023.
